Name: SD-22 Star Delta Timer – 0–60 Sec Delay, Dual Relay Output, 230V AC
SKU: 2542
Price: 600.00 INR
Availability: InStock

SD-22 Star Delta Timer – 0–60 Sec Delay, Dual Relay Output, 230V AC

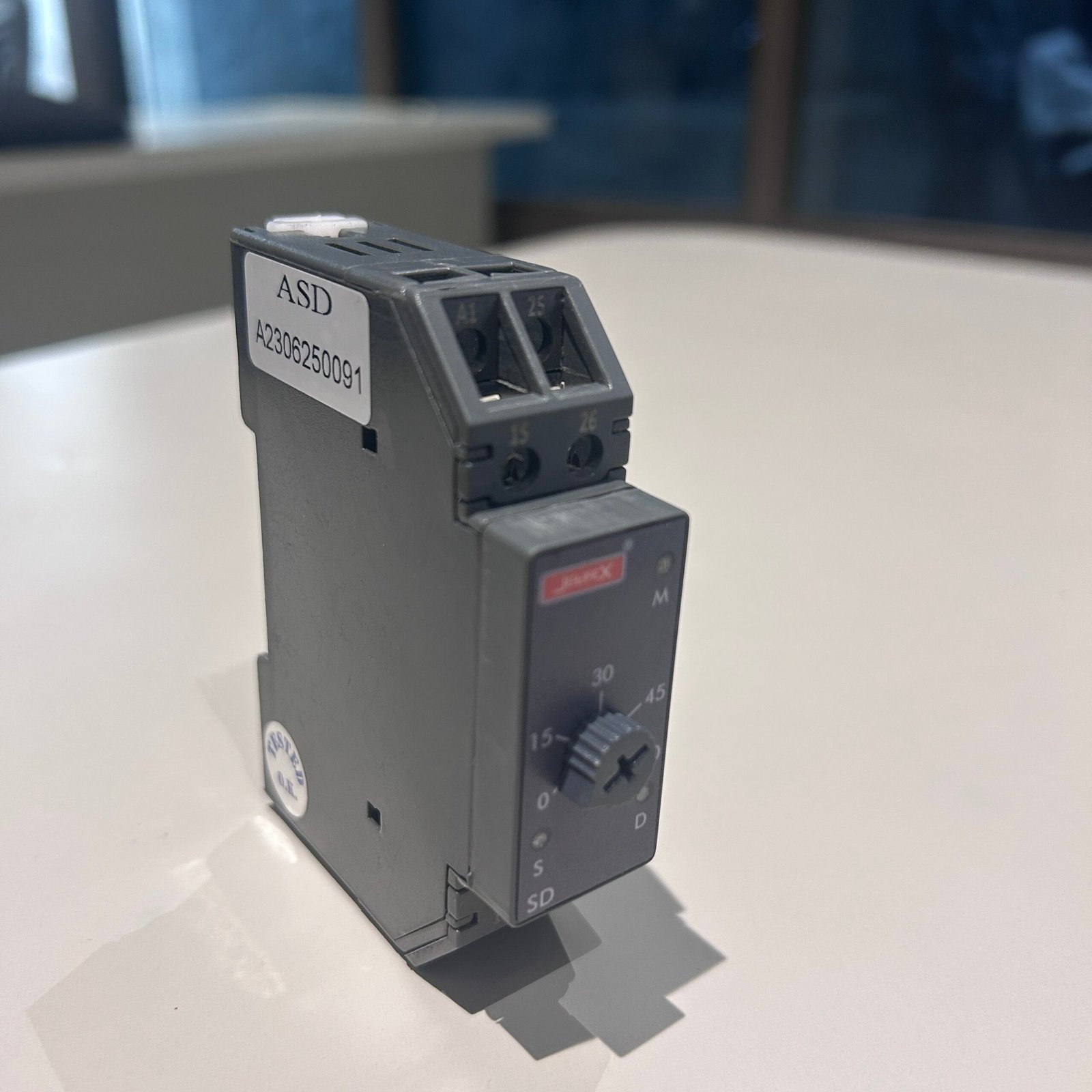

The Jeltex SD-22 Star Delta Timer is a compact, high-performance timer designed to ensure smooth and safe motor starting by managing the transition from star to delta connection. It features an adjustable time range of 0 to 60 seconds and a pause time selection of 50 ms or 100 ms, configurable using the front key.

Equipped with 2 independent relay outputs (one for Star and one for Delta), this timer is built for industrial durability and precision. Its slim 22.5mm width makes it ideal for space-saving DIN-rail panel installations.

Key Features:

Brand: Jeltex
Model: SD-22
Power Supply: 230V AC ±20%, 50 Hz
Time Range: 0 to 60 seconds
Pause Time: Selectable – 50 ms or 100 ms

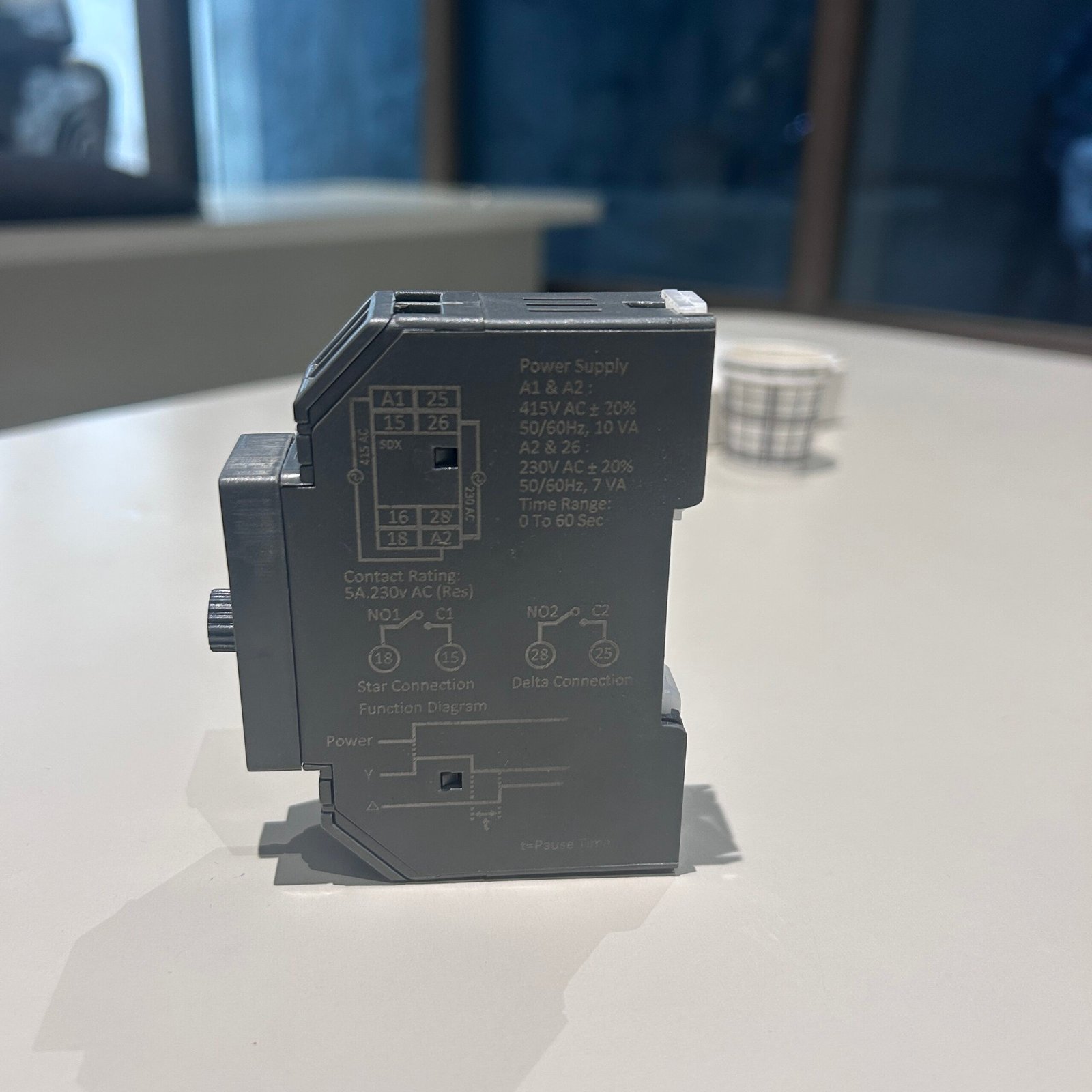

Output: 2 Relays (1 Changeover contact)
- 1st Relay: Star Connection
- 2nd Relay: Delta Connection
Relay Rating: 5A at 230V AC (Resistive Load)
Mounting: DIN Rail
Dimensions: H 90mm × W 22.5mm × D 72mm

📦

Available Model Variants:

Model	Description	Supply Voltage
SD-22-B1-00	0 to 60 Sec, Dual Relay Output	230V AC
SD-224-E1-00	0 to 60 Sec, Dual Relay Output	415V AC
SD-221-00	0 to 60 Sec, Dual Relay Output	110V AC

Ideal for motor control panels, industrial automation, and electrical distribution boards, the Jeltex SD-22 Star Delta Timer ensures reliability, performance, and protection where it matters most.
